CTi Smart Systems has designed a new programable cloud -based smart antenna, which works as control or monitor device in any electrical system.
Two versions of the Smart Cellular Antenna were produced by CTi Smart Systems, SA-1 which has a Modbus/Can Bus channel and SA-2 which has a mesh network instead.

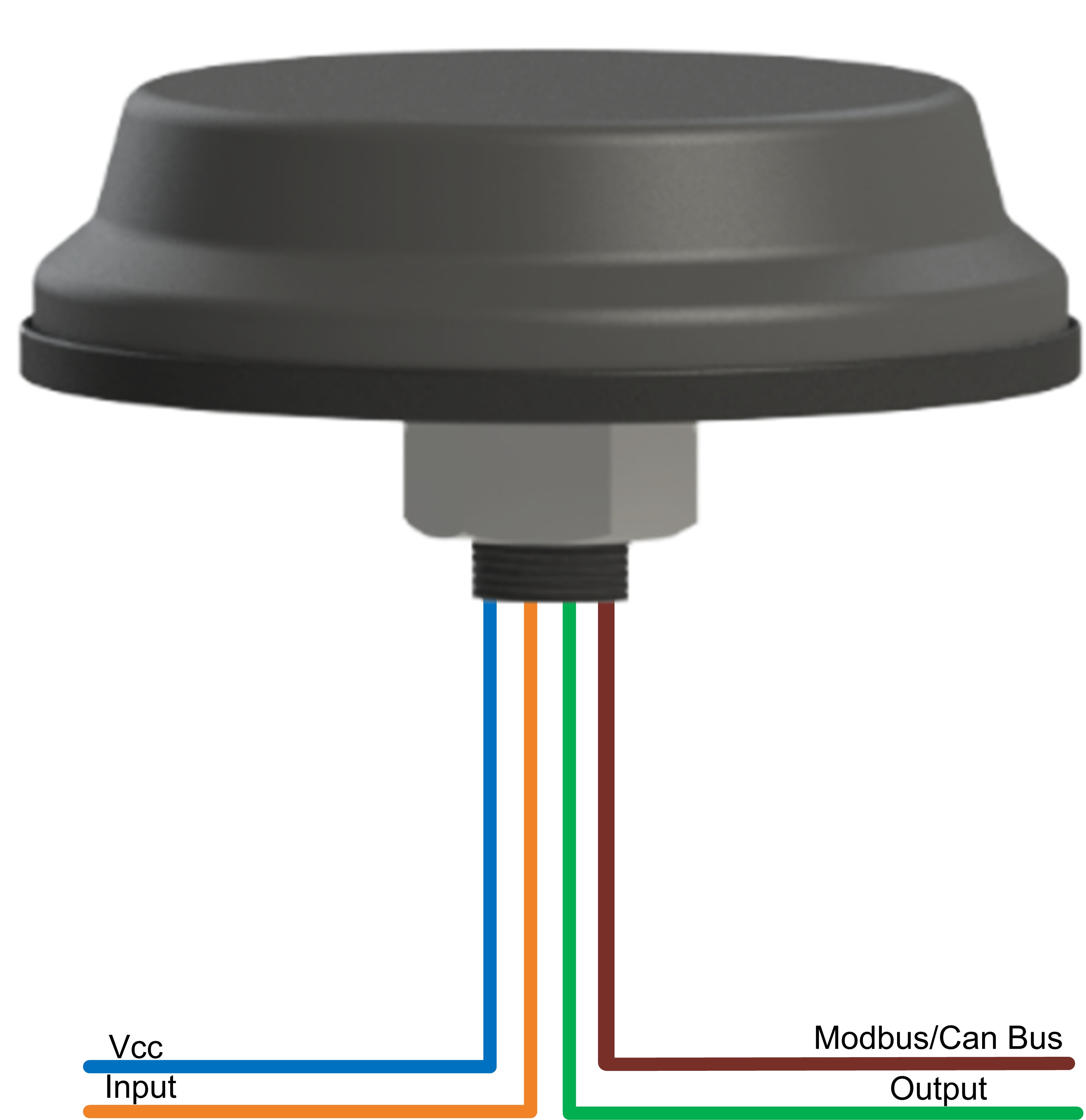

SA-1 has a Cat. 5 cable, which has four colored twisted pairs of wires, blue, orange, green and brown . Each pair of these four has its own function. The blue pair is an input voltage (Vcc), the orange pair is digital input channel, the green pair digital output channel and the brown pair is Modbus/Can bus channel.

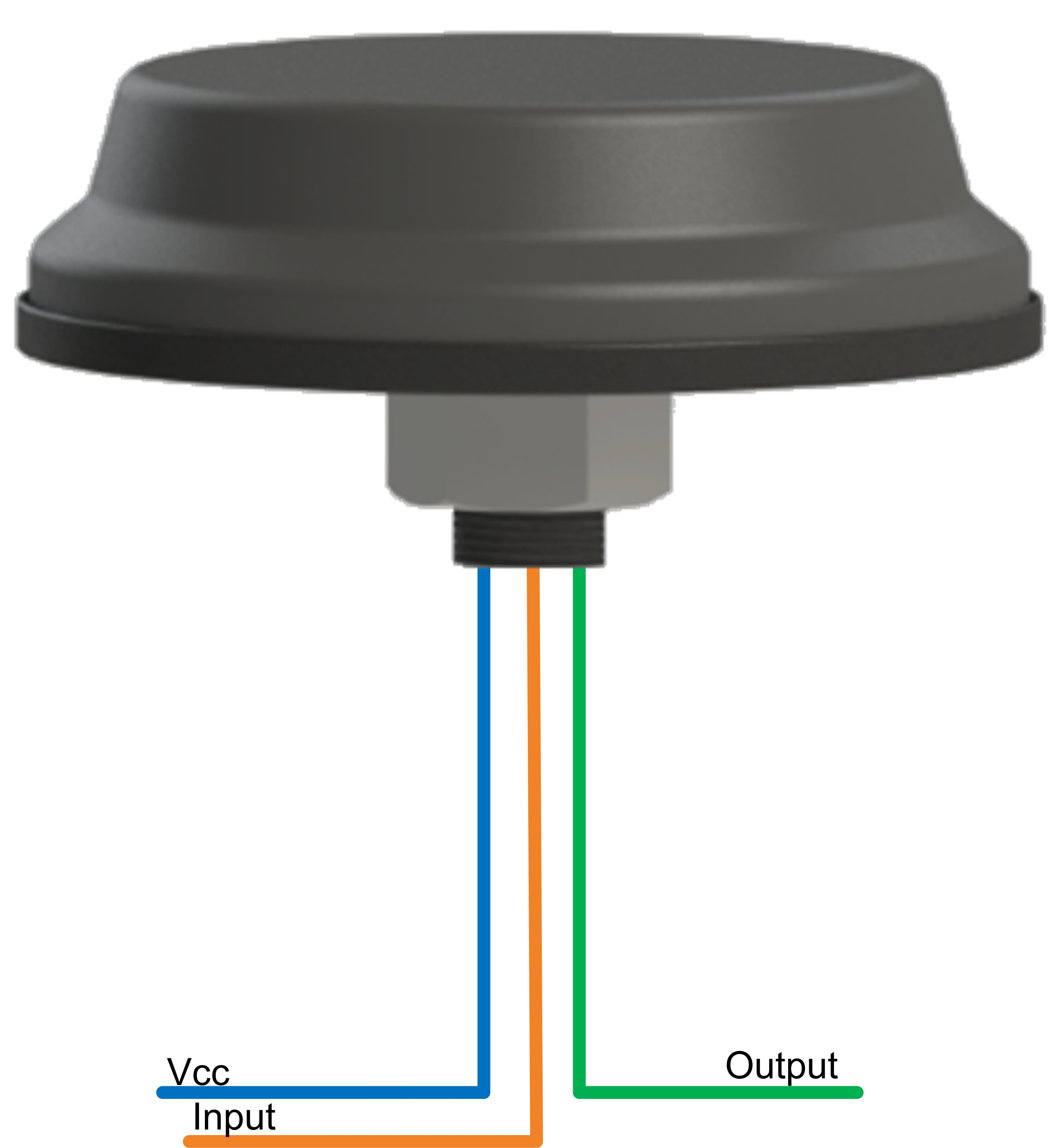

SA-2 has a Cat. 5 cable, which has four colored twisted pairs of wires, blue, orange, green and brown . Each pair of these four has its own function. The blue pair is an input voltage (Vcc), the orange pair is digital input channel, and the green pair digital output channel.
SA-2 can be connected to a mesh network instead of the Modbus/Can Bus. The mesh network is a local network topology , consists of multiple devices connected directly, non-hierarchically to each other, and cooperate with one other.
According to measuring sensors, the antenna controls or monitors a system. It sends signals to the nearest cellular tower, which transmits data to our control center(server), and the control center sends these data over cloud networking to the user’s cellular device.
Our Connection to the server is secured via VPN and data encryption.
A VPN is created by establishing a virtual point-to-point connection between two devices. To prevent disclosure of private information, VPNs allow only authenticated remote access using tunneling protocols and encryption techniques.
